2014 Can-Am Maverick 1000R X mr Preview

A mud-ready Maverick

Story by ATV.com Staff, Photography by BRP, Sep. 16, 2013

BRP unveiled some new products at its recent dealer meeting, including the mud-specific 2014 Can-Am Maverick 1000R X mr.

The 101-horsepower Rotax powered Can-Am Maverick 1000R X mr is built to attack a muddy trail or closed-course bog. The new vehicle is based off the two-seat Maverick platform, but includes an industry-exclusive and mud-specific X package, as well Tri-Mode Dynamic Power Steering, Visco-Lok QE and an updated gauge package. The Maverick 1000R X mr also wears an Air Control Suspension (ACS) with FOX Air Assist HPG Piggyback shocks (with a four-inch range of adjustment) and 30-in. Gorilla Axle Silverback tires. In addition, to keep the engine air intake, CVT air outlet and CVT air inlet free of water and debris, they have been snorkeled to strategic locations on the machine. A 4000-pound WARN winch will help you get through any mud hole that was a little more challenging that you expected.

Visit CanAmMaverick.org

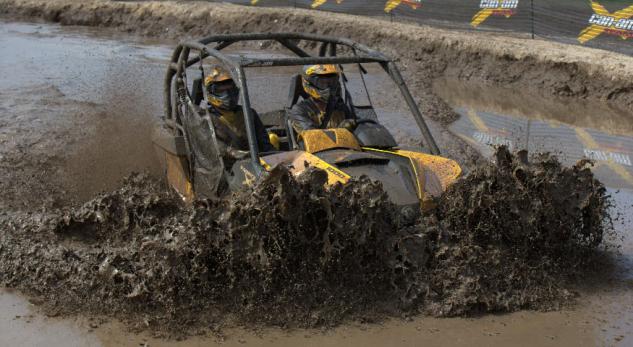

2014 Can-Am Maverick 1000R X mr Action 03

Maverick 1000R X mr Package

Air Control Suspension (ACS) with FOX Air Assist HPG Piggyback Shocks

2014 Can-Am Maverick 1000R X mr Front

Via an onboard compressor, the industry-exclusive ACS system adjusts the front and rear high-pressure gas FOX Air Assist HPG Piggyback shocks to six rider-selectable preload levels – for a total adjustment range of 4 inches. This allows the suspension of the X mr to be adjusted on-the-fly depending on terrain or vehicle load. It also comes with a hose that can be used to fill tires or other accessories while out on the trail.

Gorilla Silverback Tires

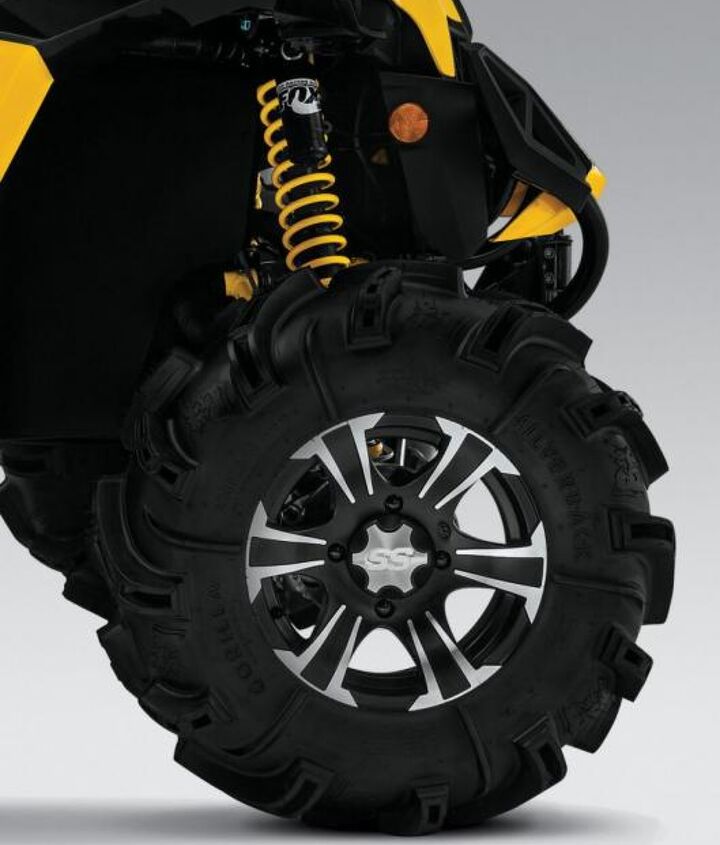

2014 Can-Am Maverick 1000R X mr Front Wheel

The same tires found on the Can-Am Outlander 1000 X mr ATV, BRP chose the 30-inch Gorilla Axle Silverback tires for their exceptional mud-riding characteristics. With a tall lug and aggressive tread pattern, the tires are designed to offer superb mud performance, yet a smooth ride when traveling to the mud hole. The tires are mounted on 14-inch cast aluminum wheels.

2013 Can-Am Maverick X rs

Engine Air Intake and CVT Inlets/Outlets

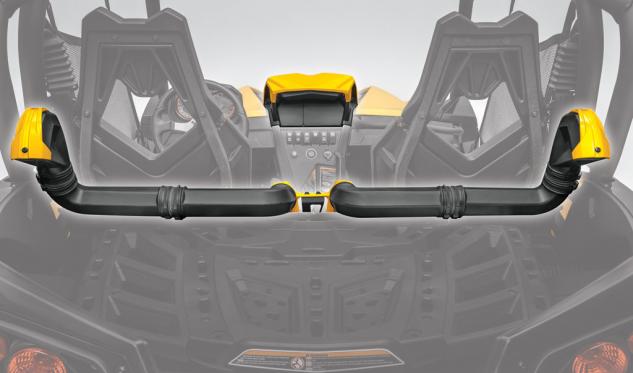

2014 Can-Am Maverick 1000R X mr Air Intake

BRP moved critical components like the CVT intake, CVT exhaust and engine air intake as high as possible on the Maverick 1000R X mr. The system is designed with the proper air volume to keep everything operating efficiently.

Mud-Calibrated CVT Transmission

According to BRP, the CVT system is calibrated for performance in wet terrain and conditions and features a 13-bolt sealing system on the compartment cover. A dedicated drain plug is built into the cover and easily accessible if the need ever arises to remove water from the CVT housing. The CVT intake is at a higher location in the chassis for optimal performance in wet riding conditions.

Tri-Mode Dynamic Power Steering (DPS)

2014 Can-Am Maverick 1000R X mr Action 01

BRP’s Tri-Mode DPS system offers variable steering assistance and is designed to offer less assist at high speed and more assist at low speed. It also allows the driver to dial in his or her preference with three modes (Hi, Med, Lo).

Visco-Lok QE

All DPS-equipped models come with the Visco-Lok QE calibration giving an even quicker engagement of the front differential. It progressively transfers power from a slipping front wheel to the gripping one – automatically with no buttons to push or levers to pull. This differential does not have a speed or rev limiter.

WARN Winch

2014 Can-Am Maverick 1000R X mr Action 02

A 4,000-pound WARN winch kit includes a roller fairlead, wired remote control and integrated remote storage.

2013 Can-Am Outlander 1000 X mr Review

Analog/Digital Gauge

The Maverick 1000R X mr has an upgraded gauge over the base Maverick and now includes a 3-D background for enhanced visual clarity. Featuring state-of-the-art instrumentation with an analog tachometer and speedometer combined with an advanced digital information center.

Custom Steering Wheel

A three-spoke steering wheel is outfitted with molded grips and a brushed aluminum centerpiece to add to the Can-Am side-by-side’s performance looks.

Front Bumper

A rugged front bumper protects the Maverick 1000R X mr from trail debris.

X-Package

2014 Can-Am Maverick 1000R X mr Rear

Stitched with the X-package logo and accented with white and yellow highlights, the seats on the Maverick 1000R X mr are eye-catching. X-package graphics and sponsor logos complete the look.
