2011 Yamaha Raptor 125 vs. 2011 Pitster Pro FXR 125R

Low displacement sport quad shootout!

Story by Joe Tolle, Photography by Joe Tolle, May. 18, 2011

ATV.com and Yamaha are teaming up to give away a 2011 Yamaha Raptor 125 to one of our readers. This is the final article in a four-part series. Click here for the more information on the Yamaha Raptor 125 Contest, which officially opens on June 1, 2011.


The 125cc Sport ATV class is a small yet very important part of the market. While there may be others out there, Pitster Proís FXR 125R, and Yamahaís Raptor 125 are the two main players in a class that provides the next step for young riders who have outgrown their 90cc machines, allows for more classes in youth ATV racing, and most importantly, will introduce many new riders to the fun of ATVing.

Having already track and trail tested both the Raptor 125 and Pitster Pro FXR125R, we can attest that both are capable performers, and each excels in its own way. The Yamaha was designed as a good all-around sport ATV, while the Pitster Pro was designed more as a low-tech, out of the box race machine. Making this comparison even more interesting, both machine share an identical retail price of $3,399. That leaves us to compare rider preference, performance, and durability.

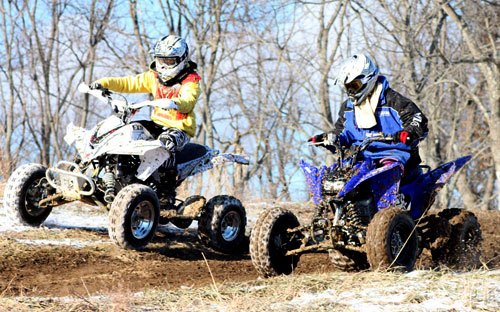

2011 Yamaha Raptor 125 vs. 2011 Pitster Pro FXR 125R

Technical Breakdown

Both machines feature 124cc, air-cooled, two-valve, single overhead cam, four-stroke engines. The Pitster Proís engine is a horizontal design, while the Yamahaís cylinder is vertically mounted. A 22mm carburetor feeds the FXR, while a 29mm Mikuni feeds the Raptor. Kick starting fires up the Pitster, while the Yamaha features push button electric starting. Both ATVs feature manual shift transmissions. The Raptor features a five-speed design with a one down four up gear pattern, while the FXR utilizes a close ratio four speed gearbox with neutral at the bottom of the pattern.

2011 Pitster Pro FXR 125R 2011 Yamaha Raptor 125

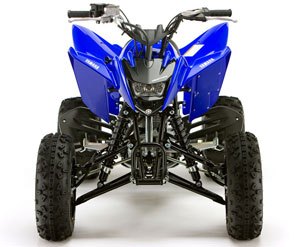

The Pitster Pro features a beefy looking chromoly frame, camber and caster adjustable chromoly A-arms, and a light weight aluminum swingarm. As for the Raptor, it is outfitted with a mild steel frame, non-adjustable dual A-arm front end, and rear swingarm. Both machines feature easy-to-use eccentric chain adjustment.

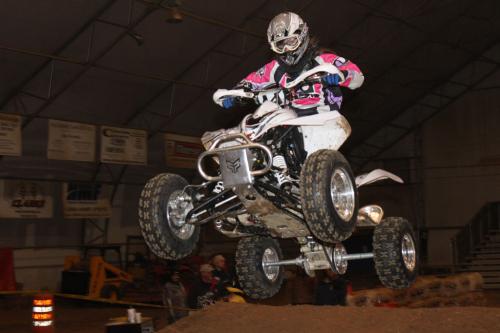

2011 Pitster Pro FXR 125R

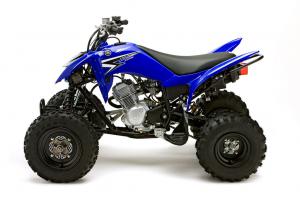

2011 Yamaha Raptor 125

The Pitster is outfitted with piggyback reservoir equipped shocks front and rear. The shocks feature preload, compression, and rebound adjustment and control 8.0 inches of travel up front 9.0 out back. The Raptor features five-way preload adjustable shocks controlling 7.5 inches of front travel, and 7.9 at the rear.

Both machines offer individually operated front and rear hydraulic disc brakes. The feature packed FXR features dual piston front calipers, steel braided brake lines, and a wave style rear rotor. The FXR also comes with a uniquely designed reverse facing brake pedal.

On the Pitster Pro, traction is provided by 19x6x10 front and 18x6.5x8 rear Carlisle tires. The Carlisleís are wrapped around lightweight aluminum rims. These tires were the industry standard in youth racing for years. The Raptorís 19x6x10 front and 18x9x8 rear Maxxis tires were created specifically for the 125. They are quickly becoming the new standard in youth ATV racing, especially for 90cc and above machines. While both rear tires are identical in listed diameter, the Yamahaís Maxxis units are actually over an inch taller, plus notably wider. Yamaha outfitted the Raptor with a set of light aluminum wheels.

The Yamaha comes with plastic chassis and swingarm skid plates, a lightweight front bumper, and the normal footpeg and heel guard setup. The Pitster Pro features a full length chassis skid plate. The swingarm features a round aluminum sprocket guard and separate rotor guard. The Pitster Pro comes with nerf bars and heel guards. Our dealer removed the heel guards prior to us picking up the machine, due to their awkward hinged design. The heel guards have to be flipped up to kick-start the engine.

The FXR measures in at 45 inches in width; five inches wider then the 40 inch wide Yamaha. The Yamaha has a 43.7 inch wheelbase, compared to the Pitster at 43 inches. The Yamaha has a 28.1 inch seat height while the Pitster sits a bit higher at 29 inches. At 244 pounds wet, the Pitster Pro is 55 pounds lighter then the 299-pound Raptor.

Shootout Details

Our riders consisted of 17-year-old former two-time 90cc National Champion Alex Kersey, 300cc four-stroke motocross racer Justin Flaugher, and 85cc and womenís class dirt bike racer Melanie Strode.

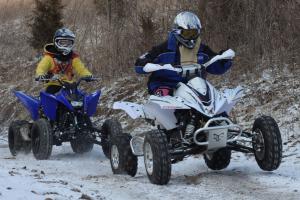

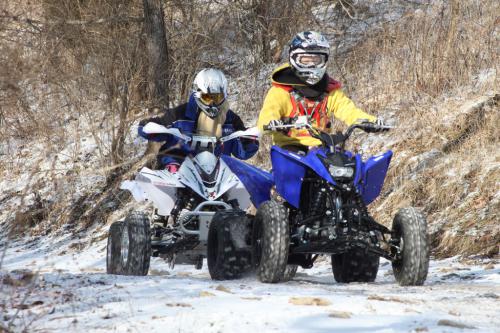

Out shootout took place at Big Rock Off-Road Park and Earlywine Indoor Motocross, both located in Maysville, Ky.  We laid out a small cross country loop at Big Rock, which consisted of several high speed straights, several decent climbs with a challenging rocky section, and one long descent. At Earlywineís our riders put the 125s to the test on the indoor track, then rated each machine in detail. We also ran timed motos as the ultimate test of performance.

Engine

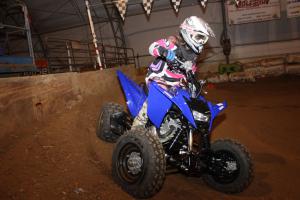

2011 Yamaha Raptor 125 vs. 2011 Pitster Pro FXR 125R

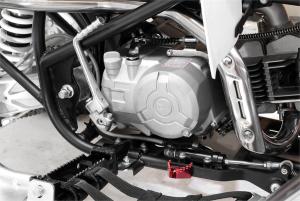

The Pitster Pro wins the engine category in terms of all out power. Itís notably louder and freer flowing exhaust aid the FXR in producing a broad strong powerband. The Pitster produced a bit more bottom, and notably more midrange power, easily pulling the Raptor on long hills and holeshots. In top-end power, the Pitster tied with the Yamaha. It is possible that its top-end rating has more to do with the transmissionís gear ratios than actual high RPM power.

When it came to transmission performance, the Pitster gave up some ground. Although it could easily pull a high gear, the spacing of the close ratio four speed made finding the ideal gear more difficult, as we discovered in the rhythm section at Earlywineís. It took a bit more effort to click through the gears. One rider noted that, ďhaving neutral at the bottom of the shifting pattern is hard to get used to.Ē

The Pitsterís engine tied the Yamaha in overall effectiveness, and a good five-speed transmission would have put it over the top. As it is, the FXR gives up six tenths of a point to the Raptor in overall engine ratings.

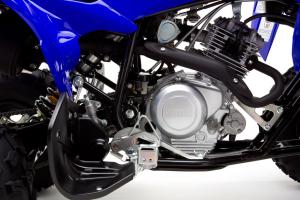

The Raptorís engine is strong and smooth, pulling well throughout the RPM range. It has good low-end torque, a smooth seamless midrange, and you can rev the guts out of it. It will hang with the Pitster Pro, but gives up some midrange torque in trade for a quieter yet more restrictive exhaust.

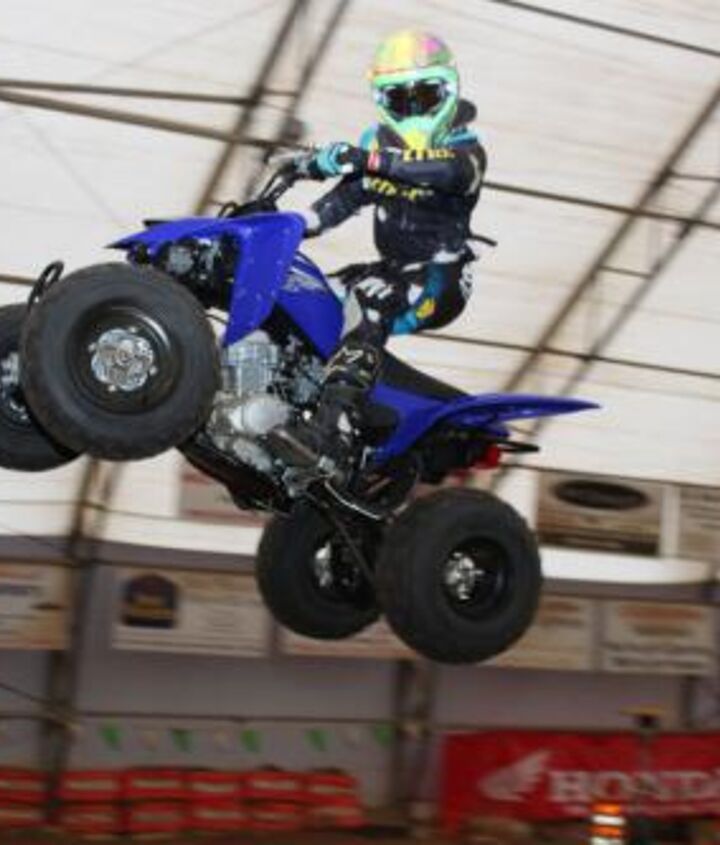

2011 Yamaha Raptor 125 vs. 2011 Pitster Pro FXR 125R

The Raptorís gearbox is typical Yamaha. The five speed transmission shifts smoothly, its gear rations are well spaced for all types of riding, and clutch pull is light and smooth.

Good power and superb shifting were enough to allow the Raptor to sneak past the Pitster Pro in the engine department.

Handling

2011 Yamaha Raptor 125 vs. 2011 Pitster Pro FXR 125R

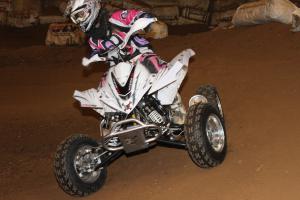

With its extra width and small tires, the race ready Pitster Pro excels in both cornering and high-speed stability. Our riders noticed the front endís tendency to push on tight turns, so we backed all of the caster out of the adjustable front end, which helped somewhat. The FXR still prefers to be steered with the rear wheels at times, and is a predictable slider.

The Pitster Pro gave up a bit in both weight feeling, and weight balance ratings. Strode actually scored the Pitster two points lower then the Raptor for weight feeling. The Pitster Pro is lighter then the Raptor, but it doesnít feel that way.

Thanks to its lighter feeling more predictable steering the Raptor surpasses the Pitster by nine tenths of a point. The Raptor is a stable and very predictable handling ATV. It goes where it is pointed in turns, regardless of which line you choose. The 125ís chassis was originally developed for the Raptor 250 so cornering and high speed stability are very good, but its taller tires and narrower stance allow for a bit more body roll then the Pitster.

Suspension

Yamaha did a superb job of finding a good all around setting for the Raptorís minimally adjustable suspension. Its larger tires, which roll over small obstacles more easily, aid the Raptorís suspension in providing the plushest ride over rocks, roots and small bumps.

Fast trail riding and forgiving jumps are no problem for the Raptorís shocks; however, once you start pre-jumping doubles or come up short, the heavier you are, the more the Raptor will find the limits of its suspension. Lighter or less experienced riders can tackle whoops easily, but heavier and more aggressive riders will have to back off as the Raptorís rear end begins kicking a bit. The Raptorís suspension is good, but its lack of adjustability hurts it in comparison to the Pitster.

2011 Yamaha Raptor 125 vs. 2011 Pitster Pro FXR 125R

The only segment of suspension where the Pitster fell behind the Raptor was in small bumps. The Pitsterís shocks are actually quite plush, however its shorter, narrower tires make the ride rougher over trail junk.

The adjustability of the FXRís shocks was a huge asset. It was good that the shocks were so adjustable, as they took some work to get dialed in. On jump landings the shocks rarely found their limits, and our riders were charging the whoops notably harder on the Pitster.

Braking

There were no split decisions when it came to brakes. The Pitster Proís rear brake worked well, but one rider found the rear pedal hard to reach. In spite of steel braided lines and dual piston calipers, the Pitsterís front brakes felt soft. We tried bleeding them several times with minimal success.

It took less effort to slow the Raptor or bring it to a halt. Its brakes offered superb feel and very good power at both ends.

Fit and Finish

Fit and Finish are often the first thing to suffer when dealing with a smaller manufacturer. The Pitster Proís ergonomics are a bit confused. A tall stem suits taller riders better, but the footpegs are far forward for riders of any size. The Pitster needs electric starting, or a redesign to its kick start that would allow for the use of a conventional heel guard design. Vibration was also more pronounced on the FXR.

2011 Yamaha Raptor 125 vs. 2011 Pitster Pro FXR 125R

The Yamahaís fit and finish ooze quality. The Raptor has well spaced ergonomics, with a very comfortable seat. Its controls feel perfectly shaped and work flawlessly. With a counterbalanced engine, vibration wasnít an issue.

Overall Ratings

After combining the rider ratings, the Raptor comes out on top. The Pitster Pro certainly shines in many areas of performance, but it seemed that the overall refinement and comfort of the Raptor 125 made it the favorite with our riders.

Lap Times

2011 Yamaha Raptor 125 vs. 2011 Pitster Pro FXR 125R

At Earlywineís we had all three of our riders run two-lap motos, on each machine, with a gate drop start. The Pitster looked faster everywhere on the track. The Pitster dominated holeshots, could carry more corner speed, and could be pushed harder in the whoops. All three riders were over two seconds faster on the FXR 125R.

To be fair, had we ran lap times on our trail loop, results may have been different. While the Pitster had the advantage on unobstructed climbs due to its lighter weight and less restricted engine, the Raptor was much easier to negotiate challenging rocky climbs with, thanks to its more accurate steering, narrower stance, plus the extra ground clearance, and traction provided by its Maxis tires.

Durability

2011 Yamaha Raptor 125

After individual testing, followed by a head-to-head shootout, we are happy to report no major failures from either ATV. The Pitster Proís rubber front A-arm bushings broke down to the point that they fell off. This left the front upper A-arms with a notable amount of flex. The sprocket guard looked as though someone had beaten its edges with a hammer, thanks to the rocks at Big Rock. The hammered guard never impeded chain movement and continues to function properly; itís pretty tough. The Pitster Proís engine made notably more valve noise then the Raptor ever since we received it from the dealer. We have checked the valves several times and everything looks fine to us.

The Raptor came through with only minor scratches, with the exception of its swingarm skid plate. In spite of having more ground clearance, the Plastic skid plate couldnít hold up to the brutal rocks. A-arm bushings are a bit more important than a swingarm skid plate, and Yamahaís dealer network makes parts easier to come by. The edge in durability goes to the Raptor.

Conclusion

If this were a riderís choice shootout, the Raptor would have clearly won. It swept in total average rider ratings and won every performance category except suspension. The Raptor is simply a more refined machine in almost every way, proving lots of small details are a huge deal.

Lap times donít lie, though. The Pitster Pro outperformed the Raptor in terms of performance, regardless of rider size, weight, or skill level. Itís faster around a motocross track and could be a capable youth woods racer or trail machine by switching to a wheel and tire setup more like the Raptorís.

2011 Yamaha Raptor 125 vs. 2011 Pitster Pro FXR 125R

This story could change by modifying either machine, but we are comparing two stock machines. For $3,399 you have two choices: get a bit more performance and race ready features with the Pitster Pro FXR 125R or a more refined, and supported Yamaha Raptor 125. Both machines are great in their own way. Picking a winner, thatís ultimately up to you!
